Fully automatic paper box window patching machine BW-3406501080
Category: Window Patching Machines
Name: Fully automatic paper box window patching machine BW-3406501080
Online Service:
Print this Page
|
Bookmark this |
Skype Online |
E-mail Us |
 PDF Download |
Click to see video |
| Prev Next | |
| Product Details | Send Inquiry |
|---|

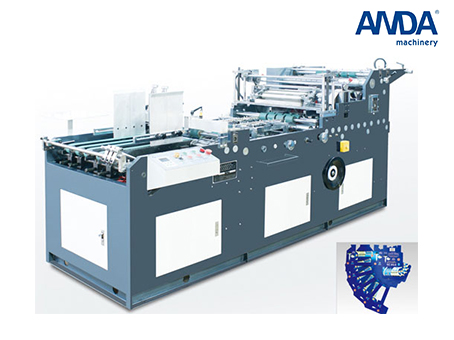

Fully automatic paper box window patching machine BW-340/650/1080
Introduction:
Fully automatic paper box window patching machine BW-340/650/1080 can sealing glue on all kind of case window,and process it.Accurate fixed position automatic increment glue tranmission position,and Automatic calculation the numerical adjust the efficiency is high.It is a nice machine to do the case window.

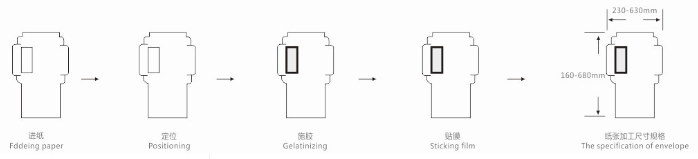

Process
Main Specifications:
Model | BW-340 | BW-650 | BW-1080 |
Paper grams | 200-1000g/m2 | 200-1000g/m2 | 200-1000g/m2 |
Work capacity | 12000 pcs/h | 10000 pcs/h | 6000 pcs/h |
Paper size | 100x120-350x400mm | 200x300-630x650mm | 200x300-650x1080mm |
Windows size | 60x30-120x160mm | 80x30-300x260mm | 80x30-300x760mm |
Film thickness | 0.05-0.25mm | 0.05-0.25mm | 0.05-0.25mm |
Main Motor power | 1.5kw | 2.2kw | 3.0kw |
Air pump power | 2.2kw | 2.2kw | 2.2kw |
Weight | 1500kg | 2000kg | 2500kg |
Machine size(LxWxH) | 3800x900x1400mm | 4500x1200x1600 mm | 5000x1500x1600 mm |
